產品介紹Products Introduction
適用產品

IoT機器人

可攜式負離子機

VR(虛擬實境)

手部消毒檢測器

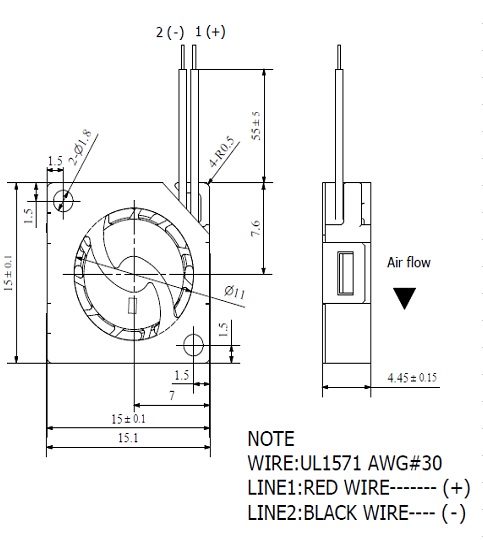

產品尺寸
產品規格

    Model Number

RFB1504

Product Name

Micro Blower

額定電壓 Rated Voltage (VDC)

3.3

運轉電壓 Operating Voltage (VDC)

2.5 ~ 3.6

額定電流 Rated Current (mA)

35 (max:42)

Rotation Speed (RPM)

14,500 ± 20%

Air Flow (CFM)

0.19

Static Pressure (mmAq)

2.47

Noise (dB(A)) at 1m

18.6

絕緣強度 Insulation Resistance

10MEGA. Ω Min. at 500VDC

(between frame and (+) terminal)

耐壓強度 Dielectric Strength

5mA Max. at 500VAC60HzOne Minute

(between frame and (+) terminal)

    Life Expectancy (hours)

20,000 at45

    Compliance

CERoHS

耐水耐塵 IP Rating

IP58

    Weight (g)

1.38

保護 Protection

鎖住保護Lock rotor

自動重啟Auto Restart   極性保護 Polarity
