產品介紹Products Introduction
適用產品

IoT機器人

可攜式負離子機

VR(虛擬實境)

手部消毒檢測器

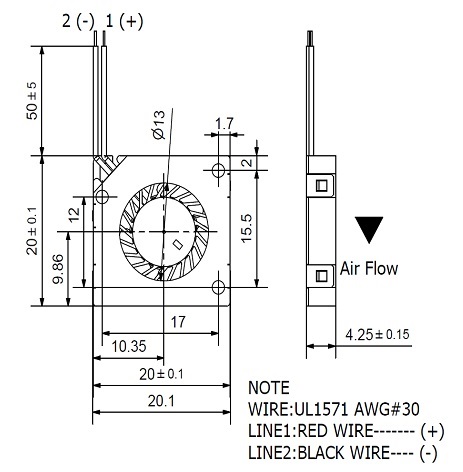

產品尺寸
產品規格

Model Number

RFB2004

Product Name

微側流扇Micro Blower

額定電壓 Rated Voltage (VDC)

3.3

5.0

運轉電壓 Operating Voltage (VDC)

2.8 ~ 3.6

4.5 ~ 5.5

額定電流 Rated Current (mA)

37 (max:44)

57 (max:68)

Rotation Speed (RPM)

10,000 ± 20%

13,000 ± 20%

Air Flow (CFM)

0.32

0.45

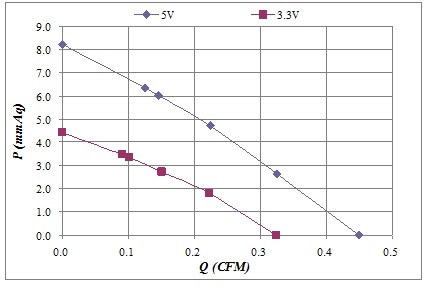

Static Pressure (mmAq)

4.43

8.23

Noise (dB(A)) at1m

17.5

21.5

絕緣強度 Insulation Resistance

10MEGA. Ω Min. at 500VDC

(between frame and (+) terminal)

耐壓強度 Dielectric Strength

5mA Max. at 500VAC60HzOne Minute

(between frame and (+) terminal)

Life Expectancy (hours)

20,000 at45

Compliance

CERoHS

耐水耐塵 IP Rating

IP58

Weight (g)

2.1

保護 Protection

鎖住保護Lock rotor

自動重啟Auto Restart 極性保護 Polarity
