首頁產品介紹微型側吹扇
產品介紹Products Introduction
適用產品

IoT機器人

可攜式負離子機

VR(虛擬實境)

手部消毒檢測器

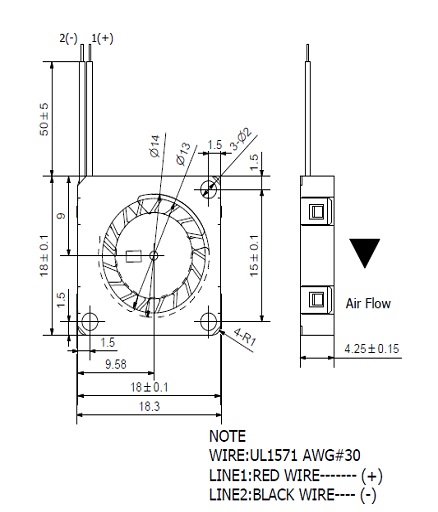

產品尺寸
產品規格

  Model Number

RFB1804

 Product Name

微側流扇 Micro Blower

額定電壓 Rated Voltage (VDC)

3.3

5.0

運轉電壓 Operating Voltage (VDC)

2.8 ~ 3.6

4.5 ~ 5.5

額定電流 Rated Current (mA)

29 (max:35)

41 (max:50)

 Rotation Speed (RPM)

8,000 ± 20%

11,000 ± 20%

 Air Flow (CFM)

0.21

0.3

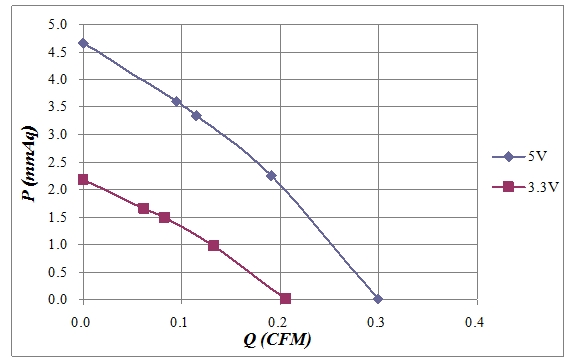

 Static Pressure (mmAq)

2.17

4.66

 Noise (dB(A)) at 1m

14.6

17.3

絕緣強度 Insulation Resistance

10MEGA. Ω Min. at 500VDC

(between frame and (+) terminal)

耐壓強度 Dielectric Strength

5mA Max. at 500VAC60HzOne Minute

(between frame and (+) terminal)

  Life Expectancy (hours)

25,000 at45

  Compliance

CERoHS

耐水耐塵 IP Rating

IP58

  Weight (g)

1.74

保護 Protection

鎖住保護Lock rotor

自動重啟Auto Restart 極性保護 Polarity
