產品介紹Products Introduction
適用產品

IPC

電子錢包

高亮度超薄微投

可攜式呼吸輔助器

牙齒3D掃描器

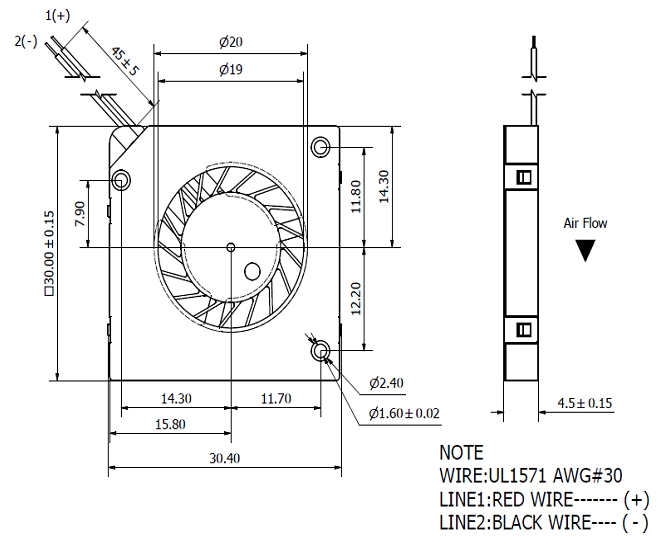

產品尺寸
產品規格

    Model Number

RFB3004

Product Name

Slim Blower

額定電壓 Rated Voltage (VDC)

3.3

5.0

運轉電壓 Operating Voltage (VDC)

2.8 ~ 3.6

4.5 ~ 5.5

額定電流 Rated Current (mA)

40 (max:50)

57 (max:70)

Rotation Speed (RPM)

6,000±20%

8,500 ± 20%

Air Flow (CFM)

0.57

0.79

Static Pressure (mmAq)

3.71

7.48

Noise (dB(A))  at1m

17.2

25.7

絕緣強度 Insulation Resistance

10MEGA. Ω Min. at 500VDC

(between frame and (+) terminal)

耐壓強度 Dielectric Strength

5mA Max. at 500VAC60HzOne Minute

(between frame and (+) terminal)

    Life Expectancy (hours)

25,000 at45

    Compliance

CERoHS

耐水耐塵 IP Rating

IP58

Weight (g)

4.79

保護 Protection

鎖住保護Lock rotor

自動重啟Auto Restart   極性保護 Polarity
