型 號 Model Number |
RFB4505 |
|
|
品名 Product Name |
薄側流扇Slim Blower |
|
|
額定電壓 Rated Voltage (VDC) |
3.3 |
5.0 |
|
運轉電壓 Operating Voltage (VDC) |
2.8 ~ 3.6 |
4.5 ~ 5.5 |
|
額定電流 Rated Current (mA) |
115 (max:135) |
165 (max:185) |
|
轉速 Rotation Speed (RPM) |
4,500±20% |
6,000±20% |
|
風量 Air Flow (CFM) |
1.15 |
1.51 |
|

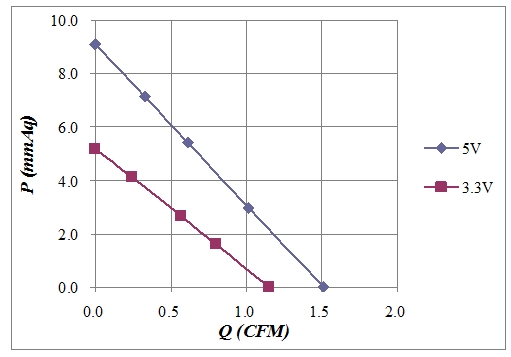

靜壓 Static Pressure (mmAq) |
5.19 |
9.08 |
|
噪音 Noise (dB(A)) at1m |
21.3 |
28.1 |
|
絕緣強度 Insulation Resistance |
10MEGA. Ω Min. at 500VDC (between frame and (+) terminal) |
|
|
耐壓強度 Dielectric Strength |
5mA Max. at 500VAC、60Hz、One Minute (between frame and (+) terminal) |
|
|
壽 命 Life Expectancy (hours) |
20,000 at45℃ |
|
|
認 證 Compliance |
CE、RoHS |
|
|
耐水耐塵 IP Rating |
IP58 |
|
|
重量 Weight (g) |
7.2 |
|
|
保護 Protection |
☑鎖住保護Lock rotor ☑自動重啟Auto Restart ☑極性保護 Polarity |
|
