型    號 Model Number

RFB3004H

品名 Product Name

薄側流扇Slim Blower

額定電壓 Rated Voltage (VDC)

5.0

運轉電壓 Operating Voltage (VDC)

2.8 ~ 5.5

額定電流 Rated Current (mA)

120 (max:138)

轉速 Rotation Speed (RPM)

11,000 ± 20%

風量 Air Flow (CFM)

1.04

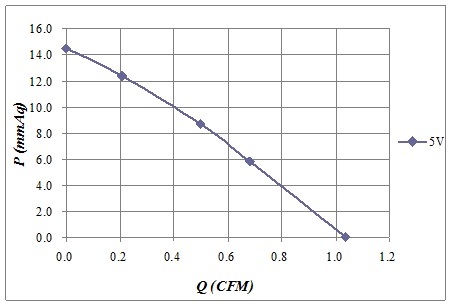

靜壓 Static Pressure (mmAq)

14.45

噪音 Noise (dB(A)) at1m

32.7

絕緣強度 Insulation Resistance

10MEGA. Ω Min. at 500VDC

(between frame and (+) terminal)

耐壓強度 Dielectric Strength

5mA Max. at 500VAC、60Hz、One Minute

(between frame and (+) terminal)

壽    命 Life Expectancy (hours)

20,000 at45℃

認    證 Compliance

CE、RoHS

耐水耐塵 IP Rating

IP58

重    量 Weight (g)

4.79

保護 Protection

☑鎖住保護Lock rotor

☑自動重啟Auto Restart   ☑極性保護 Polarity
